產品詳情
KDS-420全自動立式包裝機
KDS-420 Large vertical automatic packaging machine
主要特能和結構特點Features
1. 低投入，高回報，速度快，效率高。
2. 進口PLC全電腦控制系統，人機界面，超大顯示觸屏操作簡單。
3. 伺服運膜系統，定位準確，整機性能卓越。
4. 最大限度的提高了整機的可靠性和智能化程度。
5. 本機與計量裝置配套，即可自動完成送料、制袋、充填、日期打印、充氣（排氣）、計數、成品運輸?shù)娜^程。
1. Low b and high output, quick speed and high efficiency.
2. Imported PLC control system, human-machine interface, big touch screen, easy operation.
3. Service film transporting system, accurate bing, the whole perbance。
4. Improve the reliability and inblectualization for complete machine in maximum range.
5. This machine can be mated with measuring device, that is, finishing the whole process of automatic feeding, baging, filling, date printing and gas filling (exhuasting), accouting and product conveying.
適用范圍 Application
適合包裝顆粒、條狀、塊狀以及范圍在2000ML以內的產品。
It is suitable for packing materials in grain or piece, and material within the range of 2000ML.
可適合的配套The machine can be equipped with following devices
電腦組合秤、半自動投料裝置、螺旋式粉劑計量機、量杯式計量機、液體灌裝計量機
Electronic weighing system,semi automatic feeding device,spiral type powder measuring device and cup measuring device.
技術參數Technical Parameters
|
型號 Model |
KDS-420 |
|
制袋尺寸 Bag size |
長(Length)：60~300(mm) 寬(Width)：80~200（mm） |
|
包裝速度 Packing speed |
5-70袋/分鐘 |
|
最大膜寬 Max film width |
420(mm) |
|
卷膜厚度 Film thickness |
0.04-0.09(mm) |
|
拉膜方式 Pulling film type |
雙皮帶拉膜 dual belt tension membran |
|
耗氣量 Air consumption |
0.8Mpa 0.5m3/min |
|
電源類型 Power source |
2.2kw 220v 50Hz |
|
計量范圍 Measuring range |
Max2000ml |
|
外形尺寸 Dimension |
長(L)1320*寬(W)920*高(H)1392mm |
|
整機重量 Weight |
450kg |

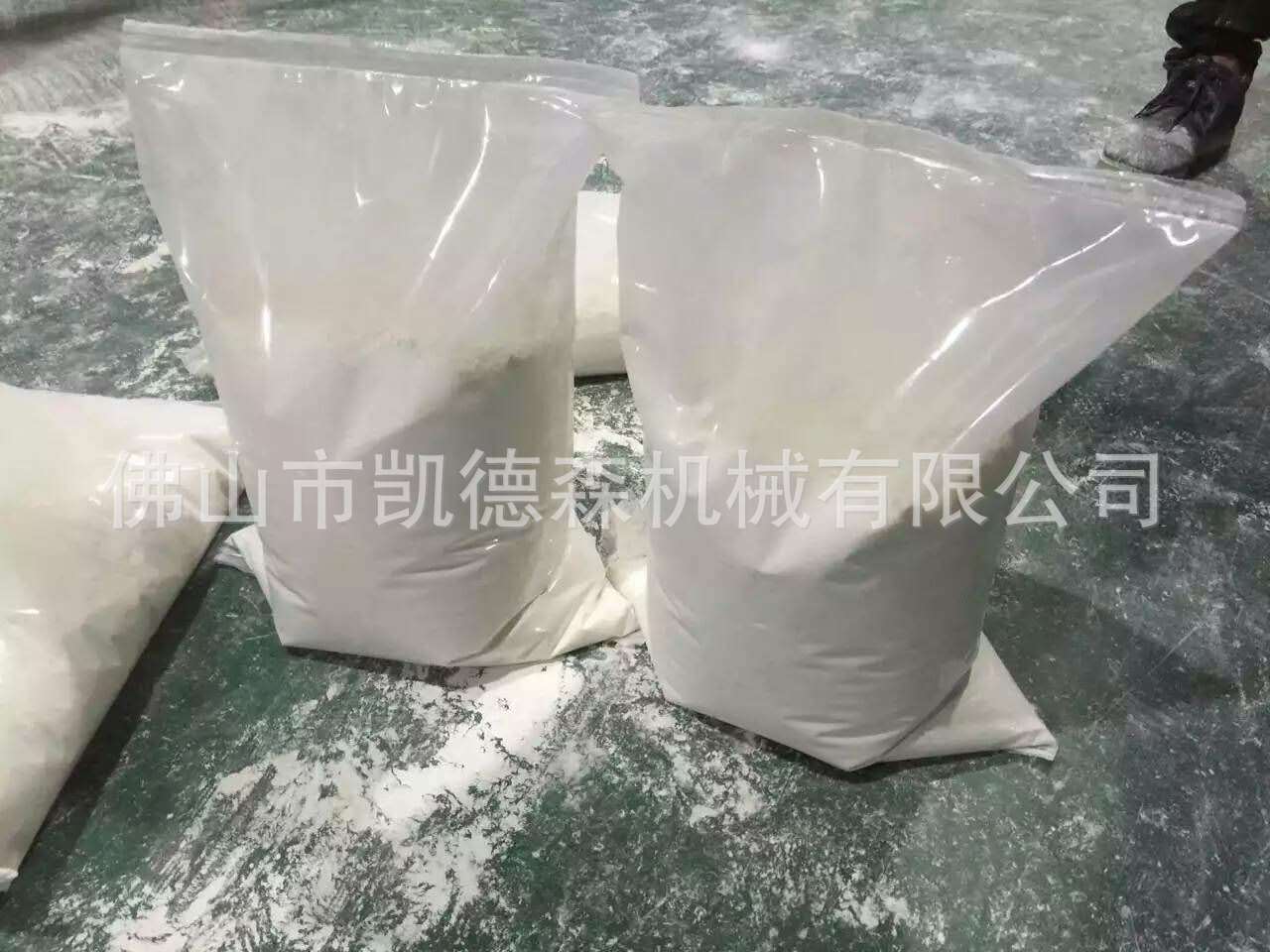

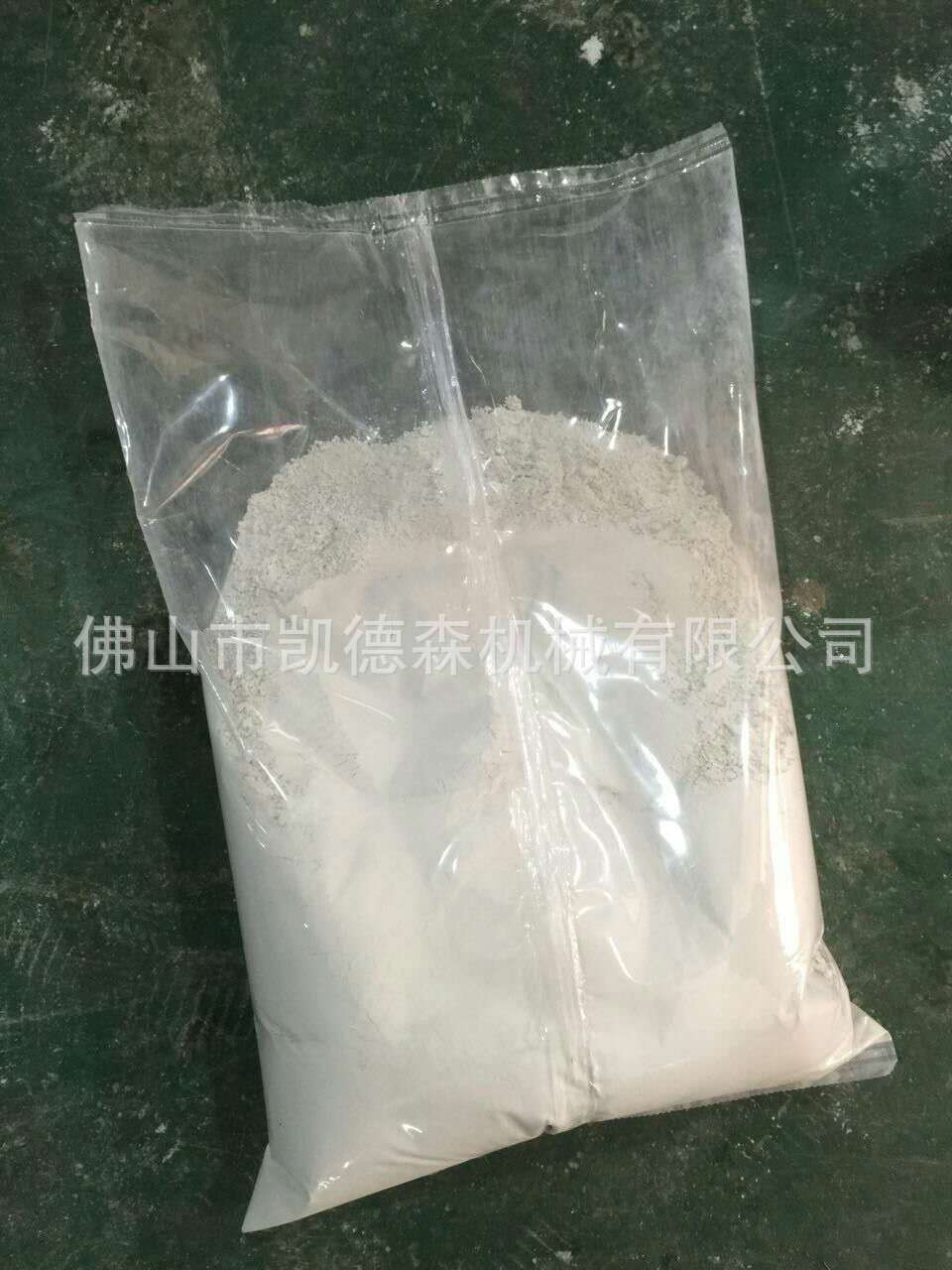

包裝樣品圖
