詳細參數
品牌	Bimed	型號	齊全
加工定制	否	材質	尼龍
阻燃性	一般	執行質量標準	歐標
產地	其他	顏色	其他

產品詳情

Bimed雙密封鎧裝防爆格蘭密封接頭系列（Orion Lead Sheathed）
Bimed代理分銷：上海頤品自動化科技有限公司
關鍵詞：Bimed電纜接頭，Bimed尼龍電纜接頭，Bimed金屬電纜接頭
Bimed不銹鋼電纜接頭，Bimed黃銅鍍鎳電纜接頭，Bimed電纜接頭附件
Bimed屏蔽型電纜接頭，Bimed防爆型電纜接頭，Bimed防爆格蘭密封接頭

Bimed Hazardous Cable Glands / Double Compression Cable Glands / Orion Lead Sheathed

Double compression design provides both a flameproof seal on the inner cable sheath and an IP and cable retention seal on the outer jacket.

Engineered with no loose components for easy and secure installation.

Suitable for use in Group I, II and III Hazardous areas .

Suitable for armoured cables (SWA, AWA.) with lead inner sheaths.

Certified to ATEX and IECEx standards with additional b approvals available (see technical for full list).

Compliant with Ex eb, Ex db, and Ex tb safety standards.

EMC Compatibility

Cap/Body Material Brass, Brass Nickel Plated, Stainless Steel, Aluminium

Seal Material Chloroprene, Silicone

Application Zone 1, Zone 21, Zone 2, Zone 22

Equipment Group Group I, Group II, Group III

Equipment Marking EX I M2 Ex db I Mb, Ex eb I Mb

EX II 2GD Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db

Ingress Protection Rating IP66, IP68 - 5 Bar, 30 min

UL Type Rating TYPE 4X

Deluge Protection DTS01 : 91

Temperature Range Chloroprene: -40°C to +100°C

Silicone: -60°C to +130°C

Thread Type Metric, NPT

Cable Type Armoured (SWA, AWA)

Accessories Lock nuts, Gaskets (Washers), Serrated Washers, Shrouds, Earth tags

Remarks O-ring available in Metric outer threads.

All accessories must be ordered separately.

Sizes from M25x1.5 up to M75x1.5 are available in Aluminium Material.

Sizes from M20x1.5 up to M90x1.5 are approved for Group I applications.

For cable glands with Product code LT, the upper temperature is limited to +80°C.

Standard marking includes ATEX, IECEx and Group II,III info.

For other special certificate marking requests, please contact us.

Some approvals do not cover all sizes, check datasheets for details.

Other thread types available upon request.

Certificate

ATEX Certificate CESI 13 ATEX 033X

ATEX Standards EN 60079-0, 1, 7, 31

IECEx Certificate IECEx CES 13.0013X

IECEx Standards IEC 60079-0, 1, 7, 31

TR CU (EAC) No TC RU C-TR.AA87.B.01120/23

TR CU Standards ГОСТ 31610.0; ГОСТ IEC 60079-1, 7, 31

UL Certificate Industrial E199260

UL Certificate Hazardous E474828

UL Standards UL514B, UL50E, UL 2225,
CSA22.2 No 18.3-12, No 94.2-15, No. 14-18
UL 60079-0, 7, 31

INMETRO Certificate DNV 21.0184 X

INMETRO Standards ABNT NBR IEC 60079-0, 1, 7, 31

Marine Appraval TAE00003WU

UKCA Certificate CML 22UKEX1183X

CCC Certificate No 2021312313000411

ECASEX Certificate 22-08-20314/E22-08-046603/NB0010

Bimed Hazardous Cable Glands（M Thread）

Double Compression Cable Glands / Orion Lead Sheathed

Bimed代理分銷：上海頤品自動化科技有限公司

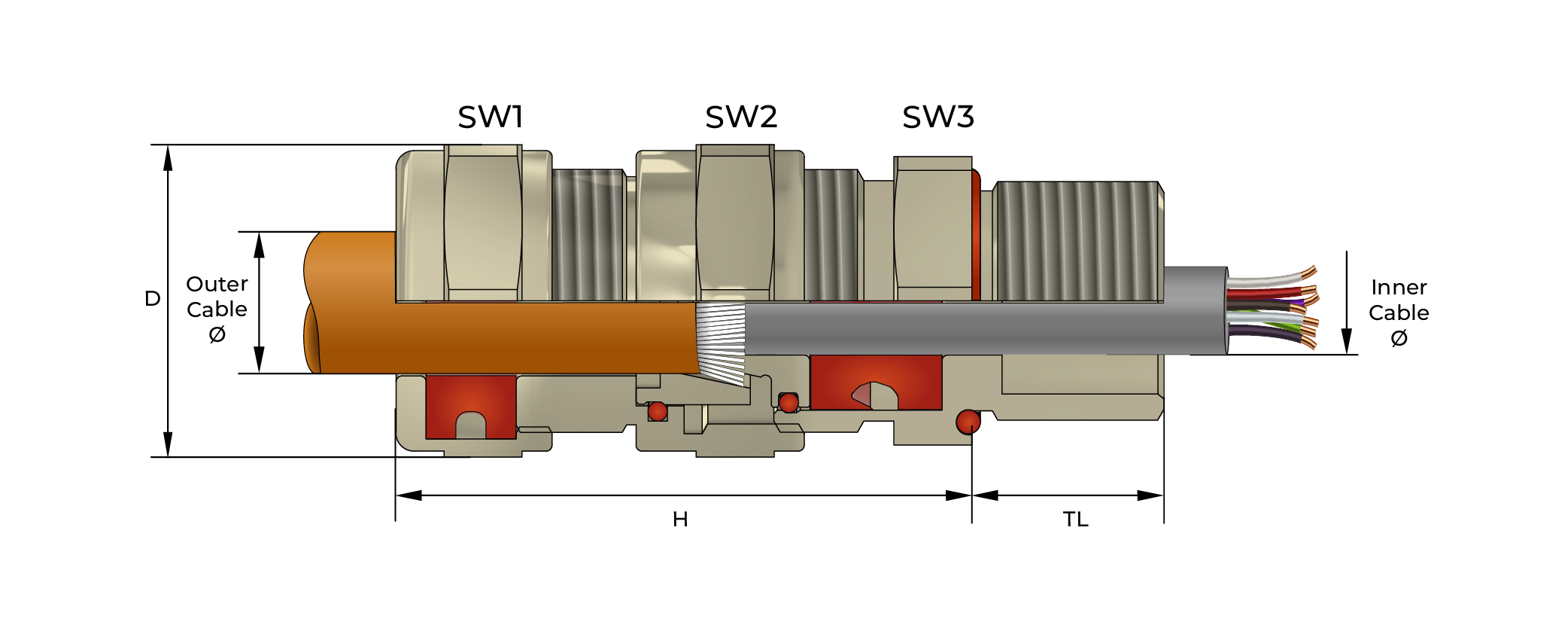

Thread Size	Inner Cable ?	Outer Cable ?	Armour Wire ?	TL	SW 1/2/3	Outer ? 'D'	Max. Height 'H'	Product Code
M20x1,5	3,0 - 8,0	6,0 - 12,0	0,70 - 1,20	16	26/26/24	29	50	KBA1SM-LSK
M20x1,5	6,0 - 11,5	8,5 - 16,0	0,70 - 1,25	16	29/29/25	31.5	51.5	KBA1M-LSK
M20x1,5	8,5 - 14,0	12,0 - 20,0	0,90 - 1,30	16	32/30/28	35	54	KBA1LM-LSK
M25x1,5	3,0 - 8,0	6,0 - 12,0	0,70 - 1,20	18	26/26/29	31.5	50	KBA2XSM-LSK
M25x1,5	6,0 - 11,5	8,5 - 16,0	0,70 - 1,25	18	29/29/29	31.5	52.5	KBA2SM-LSK
M25x1,5	8,5 - 15,0	12,0 - 21,0	0,70 - 1,20	18	34/34/32	37	57	KBA2M-LSK
M25x1,5	12,0 - 19,0	16,0 - 26,0	1,30 - 1,70	18	40/40/36	44	63	KBA2LM-LSK
M32x1,5	6,0 - 11,5	8,5 - 16,0	0,70 - 1,25	18	29/29/36	39.8	52.5	KBA3XSM-LSK
M32x1,5	12,0 - 19,0	16,0 - 26,0	1,30 - 1,70	18	40/40/40	44	64	KBA3SM-LSK
M32x1,5	15,0 - 25,0	20,0 - 33,0	1,20 - 1,80	18	52/52/48	57	81	KBA3M-LSK
M40x1,5	12,0 - 19,0	16,0 - 26,0	1,30 - 1,70	18	40/40/45	50	64	KBA4XSM-LSK
M40x1,5	15,0 - 25,0	20,0 - 33,0	1,20 - 1,80	18	52/52/48	57	81	KBA4SM-LSK
M40x1,5	20,0 - 31,0	29,0 - 41,0	1,60 - 2,20	18	60/60/55	66	92	KBA4M-LSK
M50x1,5	15,0 - 25,0	20,0 - 33,0	1,20 - 1,80	18	52/52/54	60	81	KBA5XSM-LSK
M50x1,5	20,0 - 31,0	29,0 - 41,0	1,60 - 2,20	18	60/60/55	66	92	KBA5XMM-LSK
M50x1,5	22,0 - 34,0	33,0 - 48,0	2,00 - 2,80	18	75/70/60	83	100	KBA5SM-LSK
M50x1,5	27,0 - 40,0	36,0 - 52,0	1,80 - 2,80	18	74/70/70	81.8	104.5	KBA5M-LSK
M63x1,5	22,0 - 35,0	33,0 - 48,0	2,00 - 2,80	20	75/70/68	83	100	KBA6XSM-LSK
M63x1,5	27,0 - 40,0	36,0 - 52,0	1,80 - 2,80	20	74/70/70	81.8	104.5	KBA6XMM-LSK
M63x1,5	35,0 - 44,0	43,0 - 57,0	1,80 - 2,80	20	80/80/75	89.5	109.5	KBA6SM-LSK
M63x1,5	40,0 - 50,0	47,0 - 60,0	1,80 - 2,80	20	85/85/85	94	111.5	KBA6M-LSK
M63x1,5	45,0 - 56,0	54,0 - 70,0	1,30 - 2,50	20	100/95/90	110.5	128.5	KBA6LM-LSK
M75x1,5	35,0 - 44,0	43,0 - 57,0	1,80 - 2,80	20	80/80/85	94	109.5	KBA7XSM-LSK
M75x1,5	40,0 - 50,0	47,0 - 60,0	1,80 - 2,80	20	85/85/85	94	111.5	KBA7SM-LSK
M75x1,5	45,0 - 58,0	54,0 - 70,0	1,00 - 2,30	20	100/95/90	110.5	127.5	KBA7M-LSK
M90x1,5	40,0 - 50,0	47,0 - 60,0	1,80 - 2,80	20	85/85/100	110.5	111.5	KBA8XSM-LSK
M90x1,5	45,0 - 58,0	54,0 - 70,0	1,00 - 2,30	20	100/95/95	110.5	127.5	KBA8SM-LSK
M90x1,5	60,0 - 70,0	63,0 - 80,0	1,00 - 3,50	20	115/115/110	127	158	KBA8M-LSK

Bimed Hazardous Cable Glands（NPT Thread）

Double Compression Cable Glands / Orion Lead Sheathed

Bimed代理分銷：上海頤品自動化科技有限公司

Thread Size	Inner Cable ?	Outer Cable ?	Armour Wire ?	TL	SW 1/2/3	Outer ? 'D'	Max. Height 'H'	Group Code
NPT 1/2	3,0 - 8,0	6,0 - 12,0	0,70 - 1,20	21	26/26/24	29	49.5	KBA1SN
NPT 1/2	6,0 - 11,5	8,5 - 16,0	0,70 - 1,25	21	29/29/25	31.5	51	KBA1N
NPT 1/2	8,5 - 14,0	12,0 - 20,0	0,90 - 1,30	21	32/30/28	35	54	KBA1LN
NPT 3/4	3,0 - 8,0	6,0 - 12,0	0,70 - 1,20	21	26/26/29	31.5	50	KBA2XSN
NPT 3/4	6,0 - 11,5	8,5 - 16,0	0,70 - 1,25	21	29/29/29	31.5	52.5	KBA2SN
NPT 3/4	8,5 - 15,0	12,0 - 21,0	0,70 - 1,20	21	34/34/32	37	56.5	KBA2N
NPT 3/4	12,0 - 19,0	16,0 - 26,0	1,30 - 1,70	21	40/40/36	44	62.5	KBA2LN
NPT 1	6,0 - 11,5	8,5 - 16,0	0,70 - 1,25	26	29/29/36	39.8	52.5	KBA3XSN
NPT 1	12,0 - 19,0	16,0 - 26,0	1,30 - 1,70	26	40/40/40	44	64	KBA3SN
NPT 1	15,0 - 25,0	20,0 - 33,0	1,20 - 1,80	26	52/52/48	57	80.5	KBA3N
NPT 1 1/4	12,0 - 19,0	16,0 - 26,0	1,30 - 1,70	28	40/40/45	50	64	KBA4XSN
NPT 1 1/4	15,0 - 25,0	20,0 - 33,0	1,20 - 1,80	28	52/52/48	57	81	KBA4SN
NPT 1 1/4	20,0 - 31,0	29,0 - 41,0	1,60 - 2,20	28	60/60/55	66	92	KBA4N
NPT 1 1/2	15,0 - 25,0	20,0 - 33,0	1,20 - 1,80	28	52/52/54	60	81	KBA5XSN
NPT 1 1/2	20,0 - 31,0	29,0 - 41,0	1,60 - 2,20	28	60/60/55	66	92	KBA5XMN
NPT 1 1/2	22,0 - 34,0	33,0 - 48,0	2,00 - 2,80	28	75/70/60	83	100	KBA5SN
NPT 1 1/2	27,0 - 40,0	36,0 - 52,0	1,80 - 2,80	28	74/70/70	81.8	104.5	KBA5N
NPT 2	22,0 - 34,0	33,0 - 48,0	2,00 - 2,80	28	75/70/68	83	100	KBA6XSN
NPT 2	27,0 - 40,0	36,0 - 52,0	1,80 - 2,80	28	74/70/70	81.8	104.5	KBA6XMN
NPT 2	35,0 - 44,0	43,0 - 57,0	1,80 - 2,80	28	80/80/75	89.5	109	KBA6SN
NPT 2	40,0 - 50,0	47,0 - 60,0	1,80 - 2,80	28	85/85/85	94	111.5	KBA6N
NPT 2	45,0 - 50,0	54,0 - 70,0	1,30 - 2,50	28	100/95/90	110.5	128.5	KBA6LN
NPT 2 1/2	35,0 - 44,0	43,0 - 57,0	1,80 - 2,80	41	80/80/80	89.5	109	KBA7XSN
NPT 2 1/2	40,0 - 50,0	47,0 - 60,0	1,80 - 2,80	41	85/85/85	94	111.5	KBA7SN
NPT 2 1/2	45,0 - 58,0	54,0 - 70,0	1,00 - 2,30	41	100/95/90	110.5	127.5	KBA7N
NPT 3	40,0 - 50,0	47,0 - 60,0	1,80 - 2,80	43	85/85/95	105	111.5	KBA8XSN
NPT 3	45,0 - 58,0	54,0 - 70,0	1,00 - 2,30	43	100/95/95	110.5	127.5	KBA8SN
NPT 3	60,0 - 70,0	63,0 - 80,0	1,00 - 3,50	43	115/115/110	127	158	KBA8N

Bimed Hazardous Cable Glands / Double Compression Cable Glands / Orion Lead Sheathed
