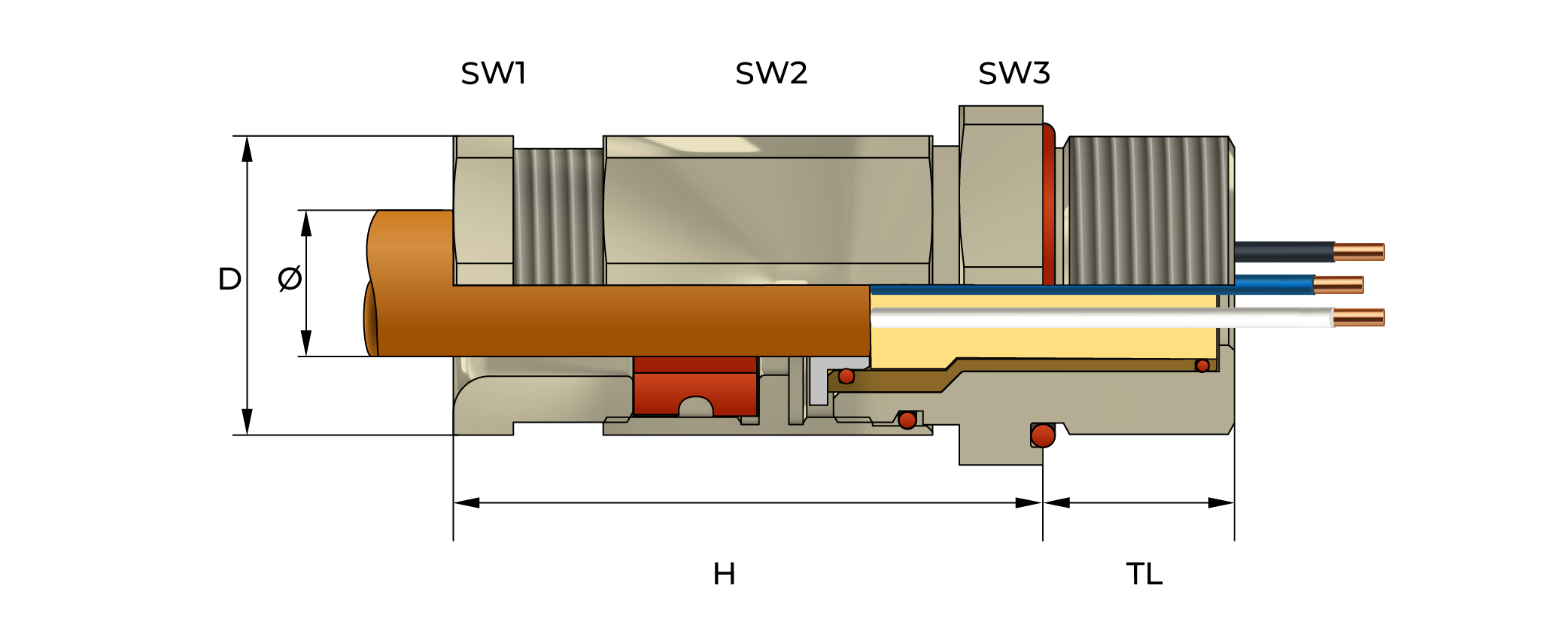

Bimed / Hazardous Cable Glands / Barrier Glands / Centaurus Nonarmoured
Barrier sealing hazardous area cable gland, suitable for non-amoured cables.
Compliant with Ex eb, Ex db, and Ex tb safety standards.
Suitable for use in Group I, II and III Hazardous areas.
The gland provides a flameproof compound seal around the individual cable cores, making this suitable for cables which exhibit "cold flow" characteristics.
The Centaurus-N also provides an IP and cable retention seal on the outer jacket.
Certified to ATEX and IECEx standards with additional b approvals available (see technical for full list).
Other threadbs available on request.
Cap/Body Material
Brass, Brass Nickel Plated, Stainless Steel
Seal Material
Silicone
Application
Zone 1, Zone 21, Zone 2, Zone 22
Equipment Group
Group I, Group II, Group III
Equipment Marking
EX I M2 Ex db I Mb, Ex eb I Mb
EX II 2GD Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating
IP66, IP68 - 5 Bar, 30 min
Temperature Range
Silicone: -60°C to +100°C
Thread Type
Metric, NPT
Cable Type
Non Armoured
Accessories
Lock nuts, Gaskets (Washers), Serrated Washers, Shrouds, Earth tags
Remarks
O-ring available in Metric outer threads.
Standard marking includes ATEX, IECEx and Group II,III info.
All accessories must be ordered separately.
For other special certificate marking requests, please contact us.
Some approvals do not cover all sizes, check datasheets for details.
Other thread types available upon request.
Certificate
ATEX Certificate
CESI 17 ATEX 007X
ATEX Standards
EN 60079-0, 1, 7, 31
IECEx Certificate
IECEx CES 17.0029X
IECEx Standards
IEC 60079-0, 1, 7, 31
TR CU (EAC)
No TC RU C-TR.AA87.B.01120/23
TR CU Standards
ГОСТ 31610.0; ГОСТ IEC 60079-1, 7, 31
Marine Appraval
TAE00003WU
UKCA Certificate
CML 22UKEX1185X
ECASEX Certificate
24-11-129569/E24-10-132975/NB0010
Bimed / HAZARDOUS / Hazardous Cable Glands（M Thread）
Barrier Glands / Centaurus Nonarmoured
M20x1,5
3,0 - 8,5
9.5
9
16
25/25/25
27
51
7
KBCTN1XSM
M20x1,5
6,0 -13,0
9.5
9
16
25/25/25
27
51
7
KBCTN1SM
M20x1,5
8,0 - 15,0
9.5
9
16
25/25/25
27
51
7
KBCTN1M
M20x1,5
13,5 - 21,0
12
11
16
30/30/30
33
52.5
9
KBCTN1LM
M25x1,5
8,0 - 15,0
9.5
9
16
25/25/30
33
51
7
KBCTN2SM
M25x1,5
13,5 - 21,0
12
11
16
30/30/30
33
52.5
9
KBCTN2M
M25x1,5
18,0 - 27,0
15
22
16
40/40/40
44.5
60
20
KBCTN2LM
M32x1,5
18,0 - 27,0
15
22
16
40/40/40
44.5
60
20
KBCTN3M
M32x1,5
23,0 - 33,0
21.5
36
16
43/43/43
47
61.5
31
KBCTN3LM
M40x1,5
23,0 - 33,0
21.5
36
16
43/43/45
50
61.5
31
KBCTN4SM
M40x1,5
29,0 - 40,0
29
55
16
50/50/50
55.5
69.5
60
KBCTN4M
M50x1,5
29,0 - 40,0
29
55
16
50/50/55
61
69.5
60
KBCTN5SM
M50x1,5
35,0 - 48,0
37
75
16
58/58/58
64
75
90
KBCTN5M
M63x1,5
35,0 - 48,0
37
75
20
58/58/68
75
75
90
KBCTN6SM
M63x1,5
42,0 - 56,0
46
99
20
75/75/75
83
97.5
193
KBCTN6M
M75x1,5
42,0 - 56,0
46
99
20
75/75/80
89
97.5
193
KBCTN7SM
M75x1,5
54,0 - 70,0
58
129
20
100/100/100
110.5
106.5
337
KBCTN7M
M90x1,5
54,0 - 70,0
58
129
20
100/100/100
110.5
106.5
337
KBCTN8M
Bimed / HAZARDOUS / Hazardous Cable Glands（NPT Thread）
Barrier Glands / Centaurus Nonarmoured
NPT
1/2
3,0 - 8,5
9.5
9
21
25/25/25
27
51
7
KBCTN1XSN
NPT
1/2
6,0 – 13,0
9.5
9
21
25/25/25
27
51
7
KBCTN1SN
NPT
1/2
8,0 - 15,0
9.5
9
21
25/25/25
27
51
7
KBCTN1N
NPT
1/2
13,5 - 21,0
12
11
21
30/30/30
33
52.5
9
KBCTN1LN
NPT
3/4
8,0 - 15,0
9.5
9
21
25/25/30
33
51
7
KBCTN2SN
NPT
3/4
13,5 - 21,0
12
11
21
30/30/30
33
52.5
9
KBCTN2N
NPT
3/4
18,0 - 27,0
15
22
21
40/40/40
44.5
60
20
KBCTN2LN
NPT 1
18,0 - 27,0
15
22
26
40/40/40
44.5
60
20
KBCTN3N
NPT 1
23,0 - 33,0
21.5
36
26
43/43/43
47
61.5
31
KBCTN3LN
NPT 1
1/4
23,0 - 33,0
21.5
36
28
43/43/45
50
61.5
31
KBCTN4SN
NPT 1
1/4
29,0 - 40,0
29
55
28
50/50/50
55.5
69.5
60
KBCTN4N
NPT 1
1/2
29,0 - 40,0
29
55
28
50/50/55
61
69.5
60
KBCTN5N
NPT 2
35,0 - 48,0
37
75
28
58/58/65
72
75
90
KBCTN6N
NPT 2
1/2
42,0 - 56,0
46
75
41
75/75/80
89
97.5
193
KBCTN7N
NPT 3
54,0 - 70,0
58
99
43
100/100/100
110.5
106.5
337
KBCTN8N
