Bimed / Hazardous Cable Glands / Barrier Glands / Centaurus Armoured
Barrier sealing hazardous area cable gland, suitable for armoured and braided cables (SWA, AWA, STA, SWB, PWA & Shielded.)
Compliant with Ex eb, Ex db, and Ex tb safety standards.
Suitable for use in Group I, II and III Hazardous areas .
The gland provides a flameproof compound seal around the individual cable cores, making this suitable for cables which exhibit "cold flow" characteristics.
The Centaurus-A also provides an IP and cable retention seal on the outer jacket.
Certified to ATEX and IECEx standards with additional b approvals available (see technical for full list).
Other threadbs available on request.
Cap/Body Material
Brass, Brass Nickel Plated, Stainless Steel
Seal Material
Silicone
Application
Zone 1, Zone 21, Zone 2, Zone 22
Equipment Group
Group I, Group II, Group III
Equipment Marking
EX I M2 Ex db I Mb, Ex eb I Mb
EX II 2GD Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating
IP66, IP68 - 5 Bar, 30 min
Temperature Range
Silicone: -60°C to +100°C
Thread Type
Metric, NPT
Cable Type
Armoured, Wire Braided, Shielded (SWA - SWB - STA - PWA - AWA)
Accessories
Lock nuts, Gaskets (Washers), Serrated Washers, Shrouds, Earth tags
Remarks
O-ring available in Metric outer threads.
Standard marking includes ATEX, IECEx and Group II,III info.
All accessories must be ordered separately.
For other special certificate marking requests, please contact us.
Some approvals do not cover all sizes, check datasheets for details.
Other thread types available upon request.
Certificate
ATEX Certificate
CESI 17 ATEX 007X
ATEX Standards
EN 60079-0, 1, 7, 31
IECEx Certificate
IECEx CES 17.0029X
IECEx Standards
IEC 60079-0, 1, 7, 31
TR CU (EAC)
No TC RU C-TR.AA87.B.01120/23
TR CU Standards
ГОСТ 31610.0; ГОСТ IEC 60079-1, 7, 31
Marine Appraval
TAE00003WU
UKCA Certificate
CML 22UKEX1185X
ECASEX Certificate
24-11-129569/E24-10-132975/NB0010

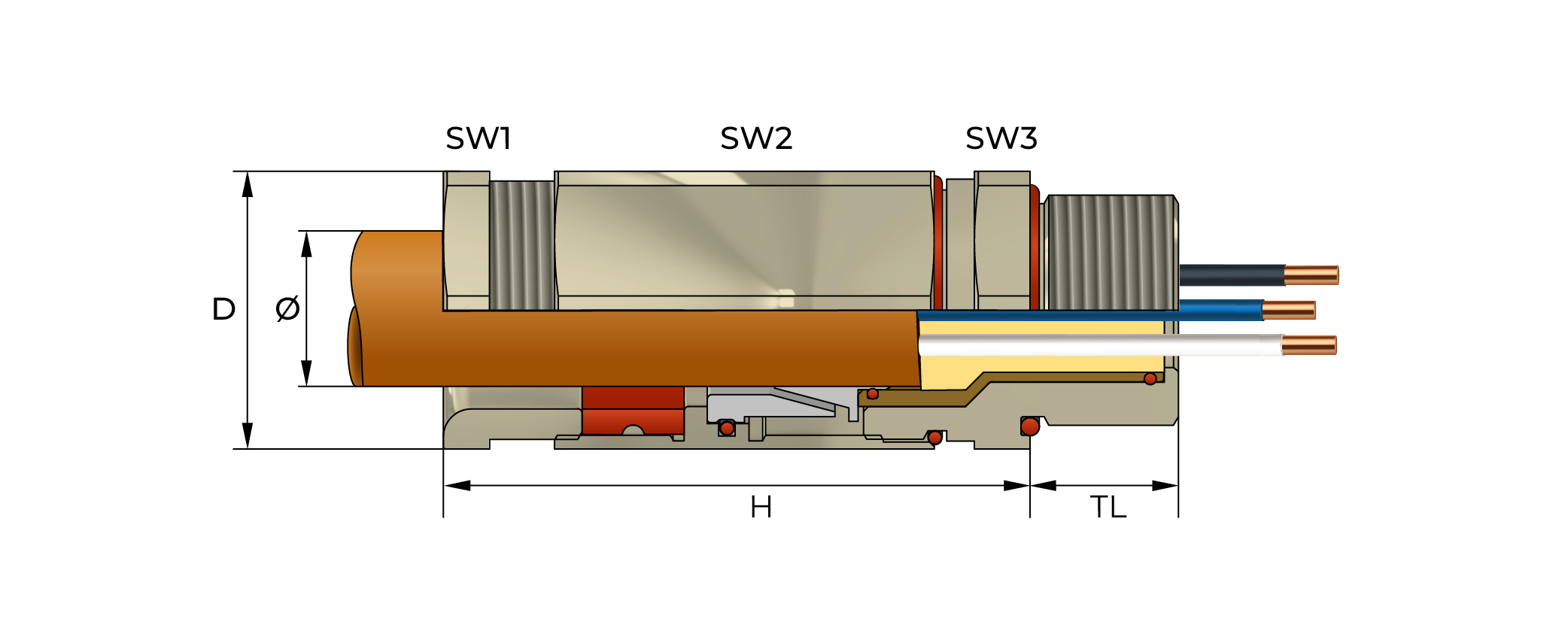

Centaurus Armoured
Cap/Body Material
Brass, Brass Nickel Plated, Stainless Steel
Seal Material
Silicone
Application
Zone 1, Zone 21, Zone 2, Zone 22
Equipment Group
Group I, Group II, Group III
Equipment Marking
EX I M2 Ex db I Mb, Ex eb I Mb
EX II 2GD Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating
IP66, IP68 - 5 Bar, 30 min
Temperature Range
Silicone: -60°C to +100°C
Thread Type
Metric, NPT
Cable Type
Armoured, Wire Braided, Shielded (SWA - SWB - STA - PWA - AWA)
Accessories
Lock nuts, Gaskets (Washers), Serrated Washers, Shrouds, Earth tags
Remarks
O-ring available in Metric outer threads.
Standard marking includes ATEX, IECEx and Group II,III info.
All accessories must be ordered separately.
For other special certificate marking requests, please contact us.
Some approvals do not cover all sizes, check datasheets for details.
Other thread types available upon request.
Bimed / Hazardous Cable Glands (M Thread)
Barrier Glands / Centaurus Armoured
Bimed代理分銷：上海頤品自動化科技有限公司
M20x1.5
3,0-8,5
9.5
9
16
25/25/25
27
61.5
7
KBCTA1XSM
M20x1.5
6,0-13,0
9.5
9
16
25/25/25
27
61.5
7
KBCTA1SM
M20x1.5
8,0-15,0
9.5
9
16
25/25/25
27
61.5
7
KBCTA1M
M20x1.5
13,5-21,0
12
11
16
30/30/30
33
63.2
9
KBCTA1LM
M25x1.5
8,0-15,0
9.5
9
16
30/25/25
33
61.5
7
KBCTA2SM
M25x1.5
13,5-21,0
12
11
16
30/30/30
33
63.2
9
KBCTA2M
M25x1.5
18,0-27,0
15
22
16
40/40/40
44.5
70.5
20
KBCTA2LM
M32x1.5
18,0-27,0
15
22
16
40/40/40
44.5
70.5
20
KBCTA3M
M32x1.5
23,0-33,0
21.5
36
16
43/43/43
47
72.3
31
KBCTA3LM
M40x1.5
23,0-33,0
21.5
36
16
45/43/43
50
72.3
31
KBCTA4SM
M40x1.5
29,0-40,0
29
55
16
50/50/50
55.5
80.5
60
KBCTA4M
M50x1.5
29,0-40,0
29
55
16
55/50/50
61
80.5
60
KBCTA5SM
M50x1.5
35,0-48,0
37
75
16
58/58/58
64
88.3
90
KBCTA5M
M63x1.5
35,0-48,0
37
75
16
58/58/58
64
88.3
90
KBCTA6SM
M63x1.5
42,0-56,0
46
99
20
75/75/75
83
117.7
193
KBCTA6M
M75x1.5
42,0-56,0
46
99
20
80/75/75
89
117.7
193
KBCTA7SM
M75x1.5
54,0-70,0
58
129
20
100/100/100
110.5
124.1
337
KBCTA7M
M90x1.5
54,0-70,0
58
129
20
100/100/100
110.5
124.1
337
KBCTA8M
Bimed / Hazardous Cable Glands (NPT Thread)
Barrier Glands / Centaurus Armoured
NPT
1/2″
3,0 – 8,5
9.5
9
21
25/25/25
27
63.5
7
KBCTA1XSN
NPT
1/2″
6,0 – 13,0
9.5
9
21
25/25/25
27
63.5
7
KBCTA1SN
NPT
1/2″
8,0 – 15,0
9.5
9
21
25/25/25
27
63.5
7
KBCTA1N
NPT
1/2″
13,5 – 21,0
12
11
21
30/30/30
33
65
9
KBCTA1LN
NPT
3/4″
8,0 – 15,0
9.5
9
21
25/25/30
33
63.5
7
KBCTA2SN
NPT
3/4″
13,5 – 21,0
12
11
21
30/30/30
33
65
9
KBCTA2N
NPT
3/4″
18,0 – 27,0
15
22
21
40/40/40
44.5
72.5
20
KBCTA2LN
NPT
1″
18,0 – 27,0
15
22
26
40/40/40
44.5
72.5
20
KBCTA3N
NPT
1″
23,0 – 33,0
21.5
36
26
43/43/43
47
74.5
31
KBCTA3LN
NPT 1
1/4″
23,0 – 33,0
21.5
36
28
43/43/45
50
74.5
31
KBCTA4SN
NPT 1
1/4″
29,0 – 40,0
29
55
28
50/50/50
55.5
82.5
60
KBCTA4N
NPT 1
1/2″
29,0 – 40,0
29
55
28
50/50/55
61
82.5
60
KBCTA5N
NPT
2″
35,0 – 48,0
37
75
28
58/58/65
72
90.5
90
KBCTA6N
NPT 2
1/2″
42,0 – 56,0
46
99
41
75/75/80
89
120
193
KBCTA7N
NPT
3″
54,0 – 70,0
58
129
43
100/100/100
110.5
126
337
KBCTA8N
